EVA Film, Ethylene Vinyl Acetate, Glossy Embossed, Frosty Frosted Film, Packaging, Cosmetic Bag, Pencil Case

EVA Film, Ethylene Vinyl Acetate, Glossy Embossed, Frosty Frosted Film, Packaging, Cosmetic Bag, Pencil Case

	100 pcs	1400pcs	50000pcs	100000pcs	2000000pcs
Packing Size	22*20*8CM	23*28*25CM	120*100*100CM*2 PALLETS	120*100*122CM* 3PALLETS	120*100*122cm * 6 PALLETS
GW (KG)	1.5KG	15KG	675KG	1350KG	2700kg
NW(KG)	1.2kg	12kg	600KG	1200kg	2400KG

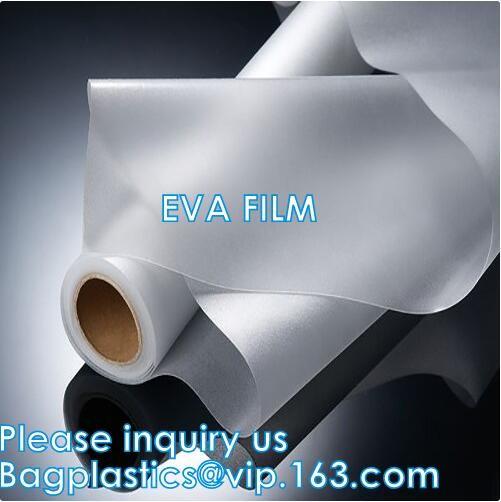

EVA FILM roll for Vacuum process casting

EVA film for lamination

EVA film for isolation

EVA film for moulding

EVA film for protection

EVA film embossed

Width: 1000mm-3200mm

Length: As per requried

Thickness: 50-150mircon

Color: White, yellow, blue or per required

Embossed EVA Film

Function: Help to mould, forged door, prepreg carbon fiber protecting cover

Please inquiry us

Bagplastics@vip.163.com

Processing Technic
Printing	Yes
Lamination	Yes
Coating	Yes
Ultrasonic Welding	Yes
Releasing	Yes
Heat Seal	Yes
Stitch	Yes
Termo Welding	Yes
High frequency welding	Yes

As technology progresses, EVA material for decorative glass are gaining popularity among more and more security glass manufacturers. EVA lamination film is a revolutionary new type of interlayer for glass and plastic sheet lamination and encapsulation without an autoclave.

1. EVA stands for Ethylene Vinyl Acetate.
2. It is a thermoplastic copolymer resin.
3. EVA resin, together with a number of ingredients, is heated, mixed thoroughly, and then extruded through a flat die of a specially designed plastic extruding machine.
4. EVA film is then formed. This film is wrapped in rolls for storage and packing.
5. This extraordinary adhesive film is non-sticky and inert to water moisture.
6. Handling and glass assembly can be done at room temperature. No air conditioner or dehumidifier is required.

EVA interlayer films are created for high-security glazing and windows laminated glass interlayers. Through vacuum and heating lamination, it makes a great difference in art glass, safety glass, and enhance protection against large impact, storm wing of powerful blasts.

Please inquiry us

Bagplastics@vip.163.com

Available Standard 4 Thicknesses:

0.25mm, 0.38mm, 0.50mm, 0.76mm

Wholesale EVA lamination film for laminated glass

Items	Model No.	Color	Thickness (mm)	Width (mm)	Length Per Roll (M)	Remarks
Ordinary Clear Series	GS25T	Ordinary Clear	0.25	900~2450	150	Only used indoors
	GS38T		0.38	900~2450	100
	GS50T		0.50	900~2450	80
	GS76T		0.76	900~2450	50

* Custom width and length are both available from us.

Feature:

1) Excellent Resistance, such as weather resistance, high temperature, and high humidity resistance, more than 80% UV light resistance.
2) Excellent adhesion to glass, metal, and plastics PET, PVC, fabric, paper, maintaining long term adhesion
3) Excellent light and transmittance and transparency.
4) High cross-linking rate after 115-degree lamination.
5) High tensile strength at 18.6 MPA, suitable for indoors.
6) Long service life than 15 years.

Processing instructions for EVA Films

1: Seal the silicone vacuum bag. Before the silicone bag shelf being pushed into the oven, start the vacuum pump to vacuum for 10 minutes at room temperature. See “Step1”. The purpose is to check whether the silicone bag is leaking out or not. And the vacuum value should at least be set 0.095Mpa.

2: Push the silicone bag shelf into the oven, then set the parameters of temperature and time. Start increasing the temperature up to 65℃ at a rate of 2-3℃/min slowly. See “Step2”. It is usually followed by keeping the temperature at 65℃ for 40minutes. See “Step3”.

Please inquiry us

Bagplastics@vip.163.com

(Notes: Following the instructions that the EVA films manufacturers give to you, the parameters may be different for different manufacturers. Because it takes time for the heat transfer through the silicone vacuum bag, so the temperature the detector gets may be different from the real temperature of the laminated glass.)

3: Go on increasing the temperature up to 115℃ at a rate of 2-3℃/min slowly. See “Step4”. Then keeping the temperature at 115℃ for 35minutes. See “Step5” curing phase.

4: Stop heating. Wait till the temperature is lower than 60℃, then open the oven door and pull out the silicone bag shelf to help to cool. But don't open the silicone bag or let cold water touch the laminated glass.

5: After the temperature is lower than 45℃, now you can open the silicone bag and check the laminated glass.

Notes:

* Based on "5mm glass + EVA film + 5mm glass".

* Please increase keeping time if the glass gets thicker.

* The above instructions are only for your reference. The temperature on the table only for your reference and must be glass surface temperature. The user should do adjusts according to the process surroundings(temperature and humidity, glass area, glass thickness, glass type, and the machine itself).

Application

Please inquiry us

Bagplastics@vip.163.com

Ordinary Clear EVA laminated glass interlayer is a kind of special film for decoration projects. It is mainly designed for use indoors and can be combined with spun silk, metal wire, paper, glass fiber, fabric, etc. in order to produce various high-grade extremely laminated architectural decorative glass.

Not Sure Where To Start?

Please inquiry us

Bagplastics@vip.163.com

Before purchasing EVA films for laminated glass, customers need to know as follows:

1: Please let us know your application (indoors or outdoors); then we can recommend the very right thickness and model for you.

2: Free samples of EVA films are available from us.

3: To get our latest Catalog - EVA Films For Laminated Safety Glass, or please contact us by Bagplastics@vip.163.com

Super Clear EVA Film for Laminated Glass

Extra Clear EVA Film for Tempered Glass

Extra Clear EVA Film for Privacy Glass

Color EVA Film for Decorative Glass

EVA Foil for Solar Panel

Super Clear Indoor EVA Film for Decorative Glass

Infrared Rejection EVA for Heat Insulation

Smart Glass

Smart switchable film

Glass Lamination Materials

Laminating kilns,EVA laminating oven,Glass laminating machine

Project for smart switchable glass
